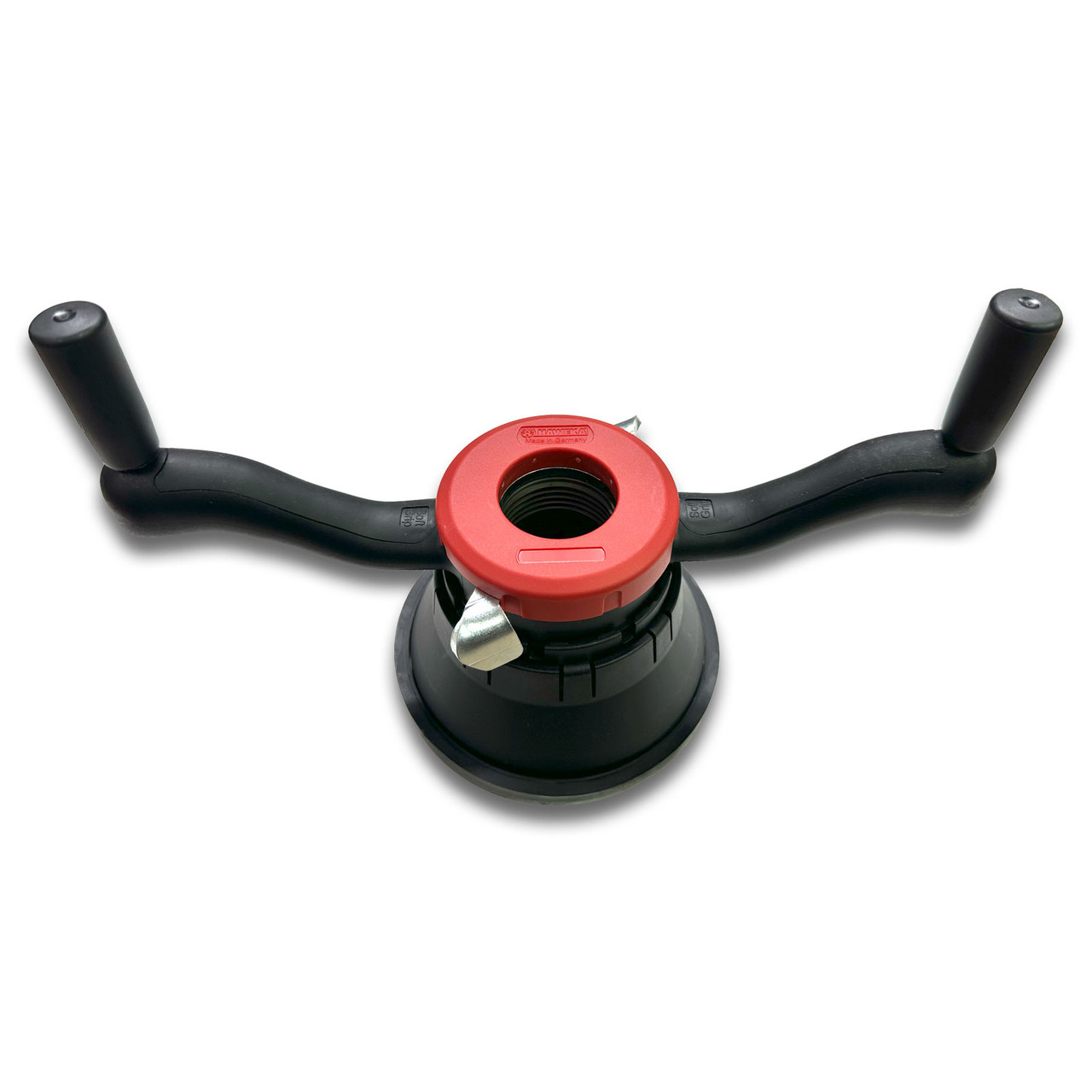

This Haweka quick wing nut set will fit all model balancers with 40mm X 3mm shaft. To check, measure the shaft diameter (40mm) and the thread spacing (5mm) on your balancer shaft. Thread spacing is the distance of one thread and one space; for example, the distance from the left edge of a thread to the left edge of the next thread (Approx. 8.5 threads per inch).
NOTE: YOU MUST CHECK THE SHAFT THREAD PITCH ON YOUR 40mm SHAFT TO SEE IF YOU HAVE A 3mm, 4mm or 5mm BEFORE ORDERING. THIS FITS 40mm X 3mm SHAFTS ONLY!
SOFTGRIP FEATURES:
- Improved Design, Essential Wheel Balancer Tooling
- New ergonomic design with soft-touch handle
- New metal alloy threaded jaws last longer
- Larger bearing surface allows for higher torque
- Optimized glide prevents fast wear of the threaded shaft
- Pressure Ring is always attached to the quick nut (a must for quick plate/flange plate use)
- Redesigned, heavy duty pressure cup.
- Improved quick action mechanism prevents opening under load
- Lower housing height for shorter shafts and larger profile wheels...always grabs the thread
- Lighter weight, easier to handle due to lower housing height
Fits all of the following wheel balancer models with a 40mm X 3mm thread pitch shaft.
- Accuturn: (Models that were upgraded from a 28mm to 40mm shaft) 5100, 5100H, 5223, 5500, 5600
- Accuturn: (Factory 40mm Shaft Models) 5800, 6000
- Atlas: WB41
- Beissbarth: All Models
- Bosch: WBE5210, WBE4100
- Brite: 40mm Shaft Models ONLY
- Coats: (Models that were upgraded from a 28mm to 40mm shaft) 650, 700, 800, 825, 850, 925, 950, 1000, 1001, 1004, 1025, 1050, 1250, IBS 2000
- Corghi: All Models with a 40mm shaft
- Hunter: 700, 1990-1992 DSP-9500
- Jericho: All Models
- Kwik Way: SBM50, 55, 100, 150, 200, 250, 800, 850
- Launch: All Models with a 40mm shaft
- M&B: All Models
- Mondolfo: All Models with a 40mm shaft
- Nussbaum: All Models
- Sicam: All Models
- Triumph: NTB550, NTB1200

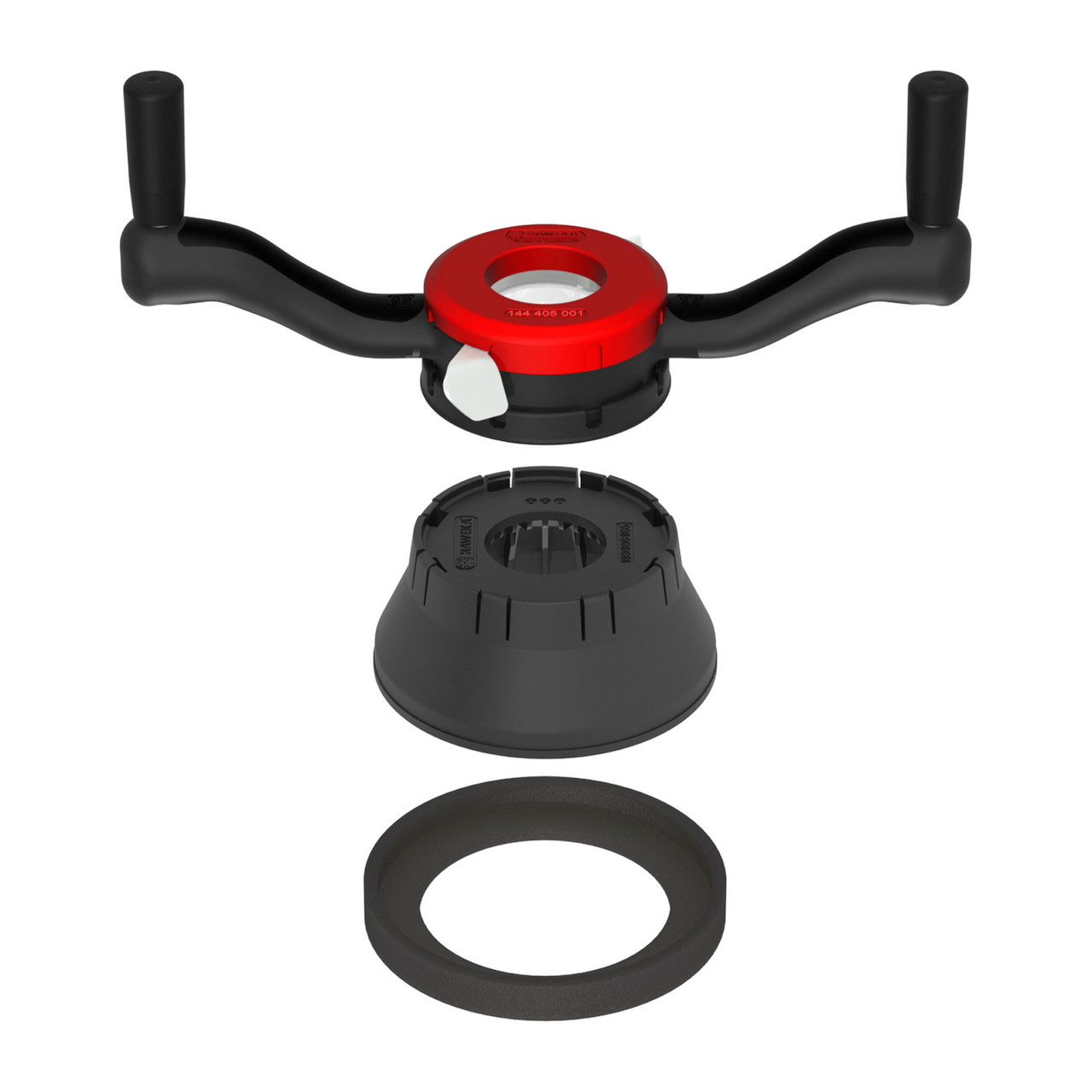

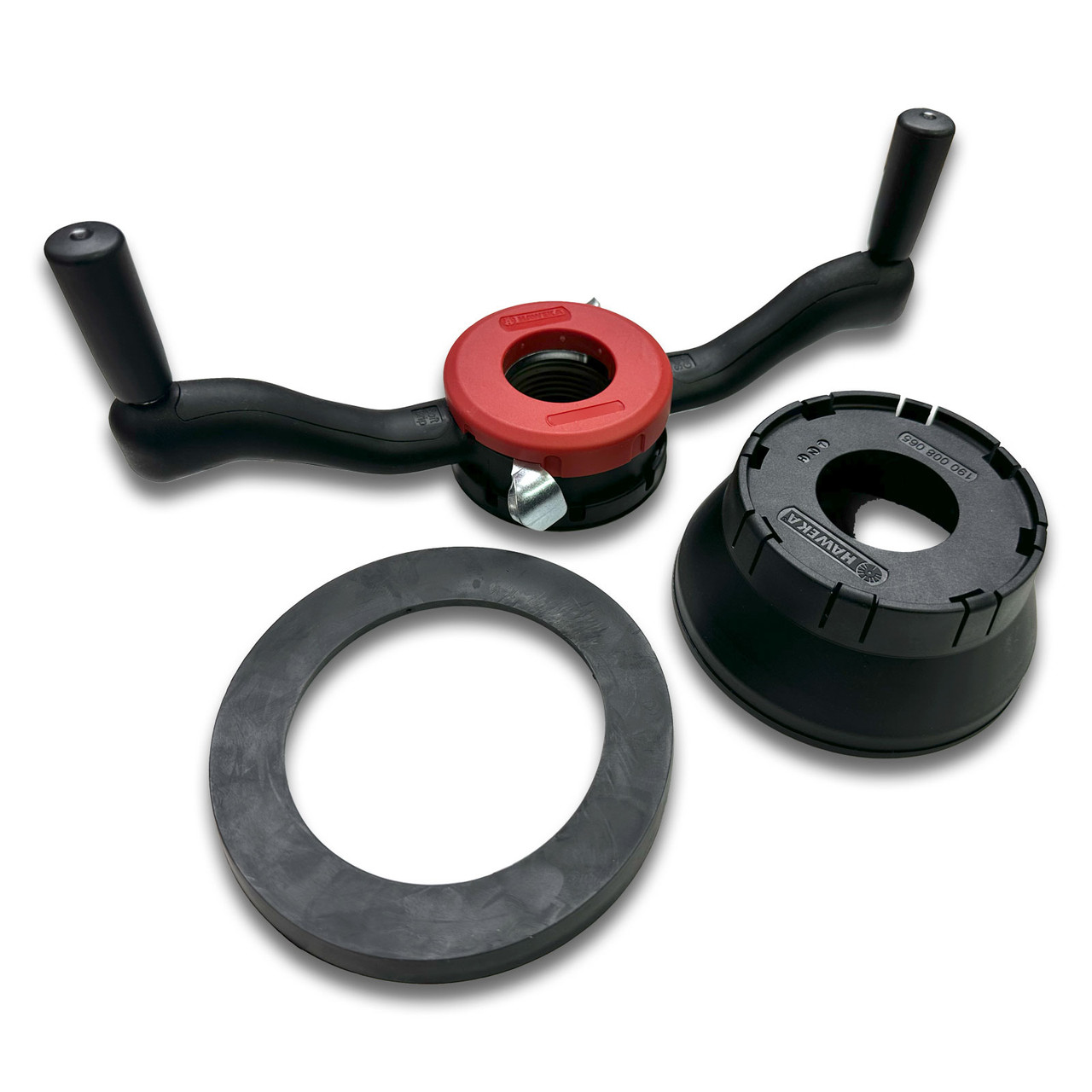

KIT INCLUDES: Wing Nut, Pressure Cup & Rubber Ring
Made in Germany
