Shock Extenders: What They Do and Why You Need Them
Shock extenders are one of those small suspension parts that can make a big difference after a rear lift. If you recently installed taller rear coil springs or rear coil spring spacers, your vehicle may sit exactly the way you wanted. But on the first test drive, you might roll out of the driveway, hit a dip, and hear it: clunk.
That noise is often caused by the rear shock topping out. In plain English, the shock has been stretched to the end of its travel. When the suspension moves, the shock runs out of room, hits its limit, and can create a hard clunking sound. If ignored, it can also shorten the life of the shock or damage the shock mount.
Quick Answer
Shock extenders move the shock mounting point so the shock has more usable travel after a rear lift. They do not lift the vehicle by themselves. Instead, they help reduce clunking, protect the shock, and keep the rear suspension working more like it should.
Why This Happens After a Rear Lift
When you raise the rear of a vehicle with taller springs or coil spring spacers, the axle sits farther away from the body than it did before. The original shock may still bolt into place, but its starting position has changed. Instead of sitting in the middle of its normal working range, the shock may now be sitting close to full extension before you even drive away.
That becomes a problem any time the suspension drops or rebounds. With lifts larger than about 2 inches, the shock can reach the end of its travel sooner than intended. That is when you may hear a clunk, feel a harsh stop, or put extra stress on the shock mount and shock body.
What Shock Extenders Do
Shock extenders reposition the shock so it starts from a better working position after the rear of the vehicle has been lifted. Instead of forcing the stock shock to operate near the end of its travel, the extender helps bring the shock back into a usable range.
That simple change can help eliminate the topping-out clunk, protect the shock from unnecessary stress, and keep the vehicle riding closer to the way it did before the lift. It is also a practical alternative to hunting for longer shocks, especially when the original shock ride quality is already working well for the vehicle.
Why Use Shock Extenders Instead of Longer Shocks?
Longer shocks can work in some setups, but they are not always the easiest answer. You have to find the right length, the right mounting style, and the right ride characteristics. If the shock is not matched correctly, the vehicle may ride differently than expected.
Shock extenders are a cleaner solution for many rear lift setups because they let you keep the shocks you already know fit the vehicle. They are typically easier to install, more affordable than replacing shocks, and designed specifically to correct shock position after the lift.

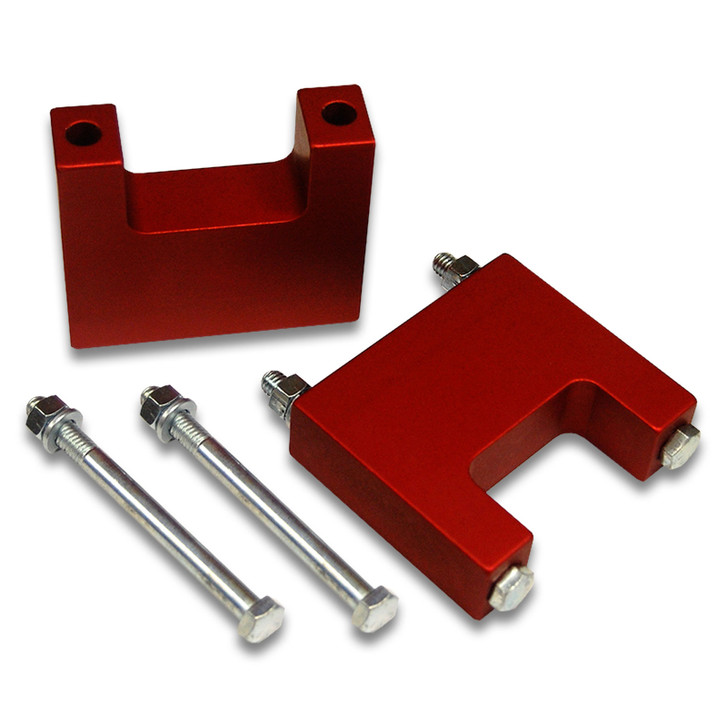

Rear “T” Style Shock Extenders
McBay Performance rear shock extenders are made for the common rear “T” style shock mount. The name comes from the T-shaped mounting bracket at the top of the shock. This mounting style was used on many rear-wheel-drive GM cars from the 1960s through the 1990s, including vehicles like the Chevy Nova II and Buick Roadmaster.
The extenders are available in 2-inch and 3-inch sets, making them a natural match for 2-inch and 3-inch rear coil spring spacer lift kits. They are built from strong 6061-T6 billet aluminum, anodized for long service life, and include new Grade 5 hardware. They are also 100% made in the USA.
When to Consider Shock Extenders
You may need shock extenders if any of these sound familiar:
- You added rear coil spring spacers or taller rear springs.
- Your rear lift is around 2 inches or more.
- You hear a clunk when the suspension drops or rebounds.
- You want to keep your current shocks instead of changing to a longer shock setup.
- You want a simple way to help restore proper shock travel after lifting the rear of the vehicle.
The Bottom Line
If your vehicle starts clunking after a rear lift, the problem may not be the lift itself. It may simply be that the shock is topping out because it no longer has the right amount of travel. A properly matched shock extender can help put the shock back where it needs to be, reduce unwanted noise, and protect the shock from unnecessary damage.
If you are running a 2-inch or 3-inch rear coil spring spacer kit with a rear “T” style shock setup, do not wait for clunking or shock damage to become a bigger problem. McBay Performance shock extenders are built to help restore proper shock travel, protect your rear shocks, and keep your lifted vehicle riding the way it should. Choose the 2-inch or 3-inch set that matches your rear lift and give your suspension the extra room it needs to work right.
If you are still unsure whether shock extenders are right for your setup, these quick answers can help.
Frequently Asked Questions About Shock Extenders
Do shock extenders lift your vehicle?
No. Shock extenders do not lift the vehicle. The lift comes from taller springs, coil spring spacers, or another suspension lift component. Shock extenders are used to help restore shock travel after the rear of the vehicle has already been raised.
Can shock extenders stop a clunk after installing rear coil spring spacers?
They can help if the clunk is caused by the shock topping out. After a rear lift, the stock shock may sit too close to full extension. A properly matched shock extender helps move the shock back into a better operating range.
Are shock extenders better than longer shocks?
It depends on the setup. Longer shocks may be the right choice for some builds, but shock extenders are often a simpler and more affordable option when you want to keep the shocks that already fit and ride well.
What size shock extender do I need?
The right size depends on how much rear lift you added and the shock mount style on your vehicle. McBay Performance offers 2-inch and 3-inch rear “T” style shock extender sets that pair naturally with matching rear coil spring spacer lift kits.
