89-11090 - 2009 & UP Ram 1500 & 1500 Classic ReadyAIR Rear Replacement Coil Spring Suspension Load Leveling Air Bag Lift Kit

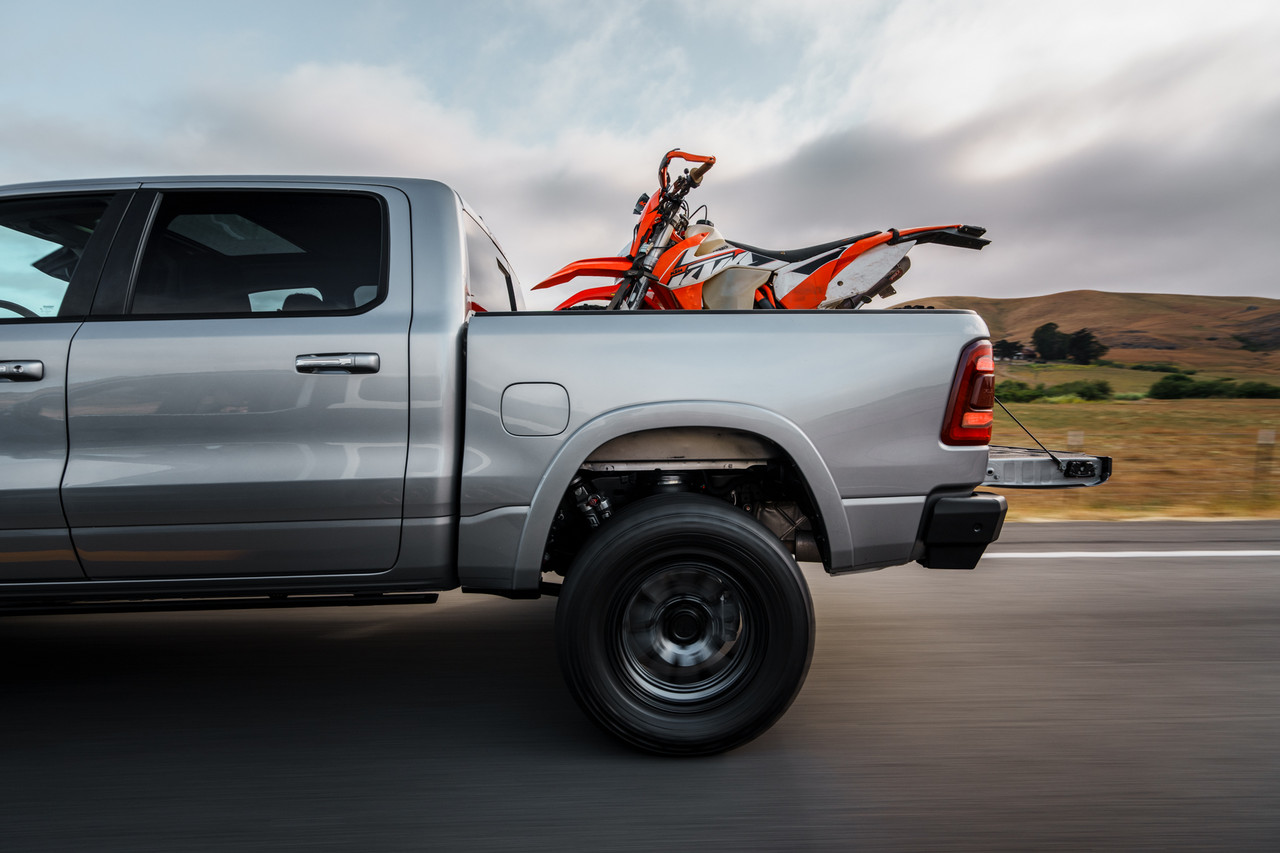

89-11090 - 2009 & UP Ram 1500 & 1500 Classic ReadyAIR Rear Replacement Coil Spring Suspension Load Leveling Air Bag Lift Kit Installed

2009 & UP Ram 1500 & 1500 Classic ReadyAIR Rear Replacement Coil Spring Suspension Load Leveling Air Bag Lift Kit

READYAIR

$699.95

(No reviews yet) Write a Review

SKU:: 89-11090
UPC:: 194933415472
Availability:: ADD TO CART TO SEE SPECIAL PRICING!
INSTRUCTIONS:: PDF DOWNLOAD

Current Stock:

Quantity:

Adding to cart… category.add_cart_announcement

READYAIR 2009 & UP RAM 1500 TRUCKS REAR COIL SPRING REPLACEMENT LOAD LEVELING HELPER KIT

Upgrade your RAM 1500 with ReadyAIR’s Rear Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.

Faster Installation - No drilling required... Simple “clamp around” bracket designs combined with 100% pre-assembly cuts installation time in half!
Precision Fitment - Built-in features that locate off the factory frame and leaf spring locations guarantee proper fitment, geometry, and operation for every install.
Properly Scaled to Match the Size of Your Truck - Rather than using the archaic “one-size-fits-all” approach, ReadyAIR properly scales the air spring size and quantity to truly maximize your specific truck’s towing and hauling capability.
Improved Ride Quality, Stability, and Load Support - Competitor double-bellow style air springs have a natural frequency of ~2.5Hz (close to race car stiffness). LOGIQ Air Springs have a 1.6Hz natural frequency to ensure that you will feel the difference.
More Suspension Travel - Competitors limit the factory travel and typically eliminate the OE bump stops. ReadyAIR kits have improved suspension travel and retain the factory bump stops for optimal suspension performance.
Lifetime Warranty - All ReadyAIR suspension kits come with a Limited Lifetime Warranty and a FREE ReadyGUARD 5-year - 60,000 mile Powertrain Warranty.

TECH SPECS:

Air Spring Location: Axle Mounted Outboard Frame Rails
Air Spring Quantity: 2
Lifting Force: 6,000 lbs @ 150 psi
Payload Capacity: 3,800 lbs @ 150 psi
Maximum Pressure: 150 psi
Minimum Pressure: 20 psi

KIT COMPONENTS:

(1) Driver Side Air Spring Assembly
(1) Passenger Side Air Spring Assembly
(1) Hardware Kit
(1) MANUAL INFLATION KIT (CLICK HERE FOR COMPRESSOR KITS)

FITMENT NOTES:

Compatible Ride Height = factory to +3"
Not Compatible with TRX or RHO Trim Packages

Estimated Installation Time: 2 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)

APPLICATION(S):

DODGE
2009-2010 Ram 1500 4x4 & 2WD

RAM
2011-2018 1500 4x4 & 2WD
2019-2024 1500 Classic 4x4 & 2WD (Excludes TRX or RHO Trim Packages)
2019-2025 1500 GEN-5 4x4 & 2WD (Excludes TRX or RHO Trim Packages)

Limited Lifetime Warranty: ReadyAIR provides a limited lifetime warranty to the original purchaser of its load support products, that the product be free from defects in workmanship and materials when used on cars and trucks as specified by ReadyAIR and under normal operating conditions, subject to the requirements and exclusions set forth in the full Limited Warranty and Return Policy that is available at ReadyLIFT.com/ReadyAIR/warranty.

READYGUARD Powertrain Warranty: ReadyLIFT is proud to offer its customers a FREE powertrain warranty. The most popular line of suspension products on the market just got better with the introduction of an unprecedented 5 year - 60,000 mile Powertrain Warranty. To register please visit: ReadyLIFT.com/ready-guard.
