Product Description

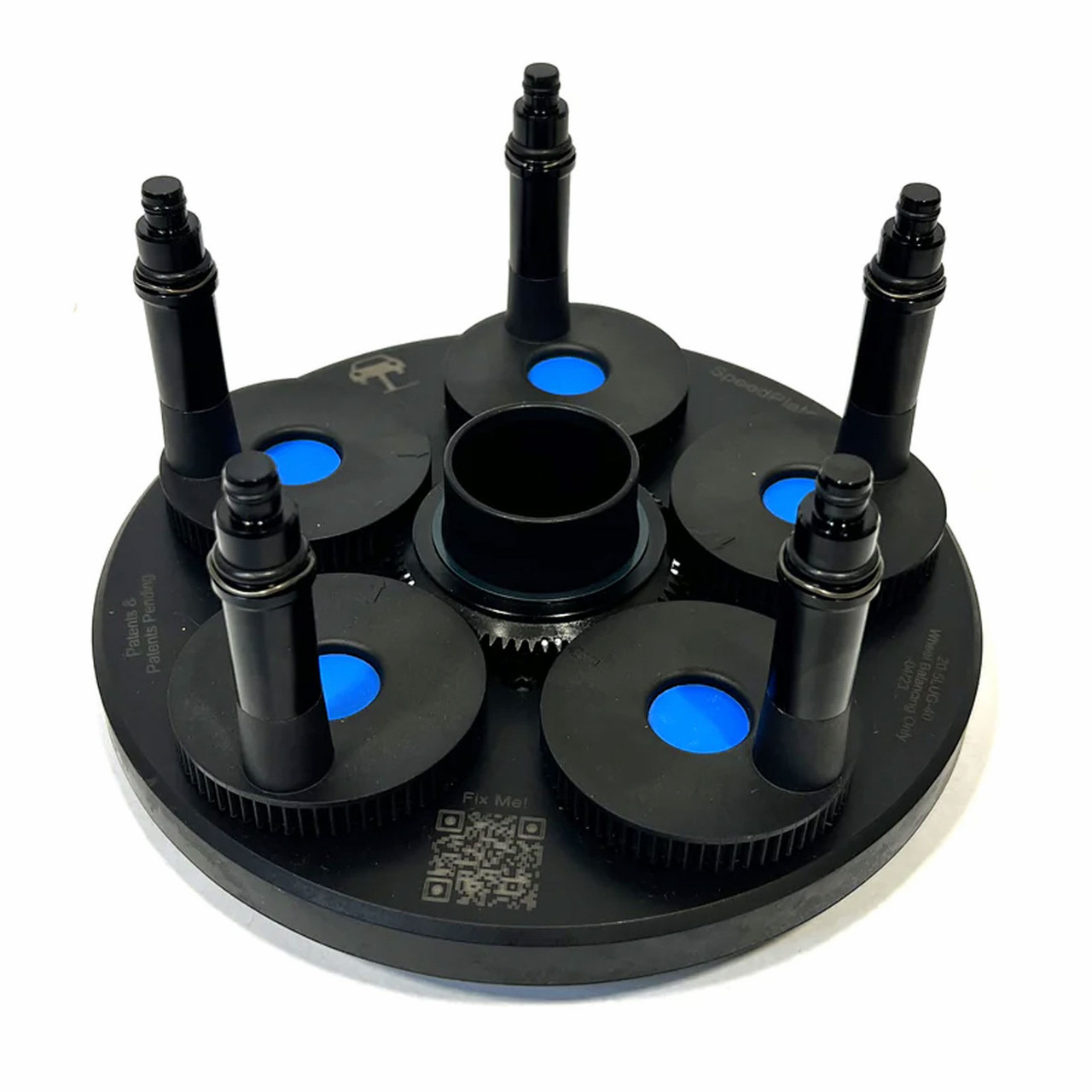

Wheel Balancer Lug Centric SpeedPlate Pro System for 40mm Shaft Machines
Now you can quickly and accurately balance most any wheel with this SpeedPlate system. A complete kit for automotive shops / garages that covers most any wheel that you will encounter. Fits 4-lug, 5-Lug, 6-Lug, and 8-lug passenger car, SUV, and light truck wheels with bolt patterns (PCD) between 95.25mm and 180mm or 3.75” to 7.08”. The easy to assemble SpeedPlates have Planetary Gear Assemblies that can be snapped into place for most any desired lug pattern. Fits all wheel balancers with a 40mm diameter shaft.
This Wheel Balancer SpeedPlate Pro System makes balancing wheels faster and easier than ever. Featuring a high-precision metal and durable plastic design, the SpeedPlate is designed to disassemble when dropped, preventing permanent damage. With just a few clicks, you can easily put it back together, and you'll be ready to balance your wheels in no time. Traditionally, wheel balancing clamping tools have been slow to set up and use, but with this unique one-finger adjustment design, it is a true SpeedPlate.
NOTE: Automatic Shaft Balancer Kit fits Grip Style Automatic Balancers Only. DOES NOT FIT Ball Style Automatic Balancers.
Features:
- Ultra-fast: One-handed, on the fly, bolt pattern adjustment
- Ultra-durable: Can take an incredible beating without losing balancing accuracy - Tested up to 400,000 cycles (most balancers have a 150,000-cycle lifespan).
- Accurate: It will ensure that there is even pressure on each lug hole, thereby forcing the wheel to sit straight as it is pressed up again the balancer’s faceplate.

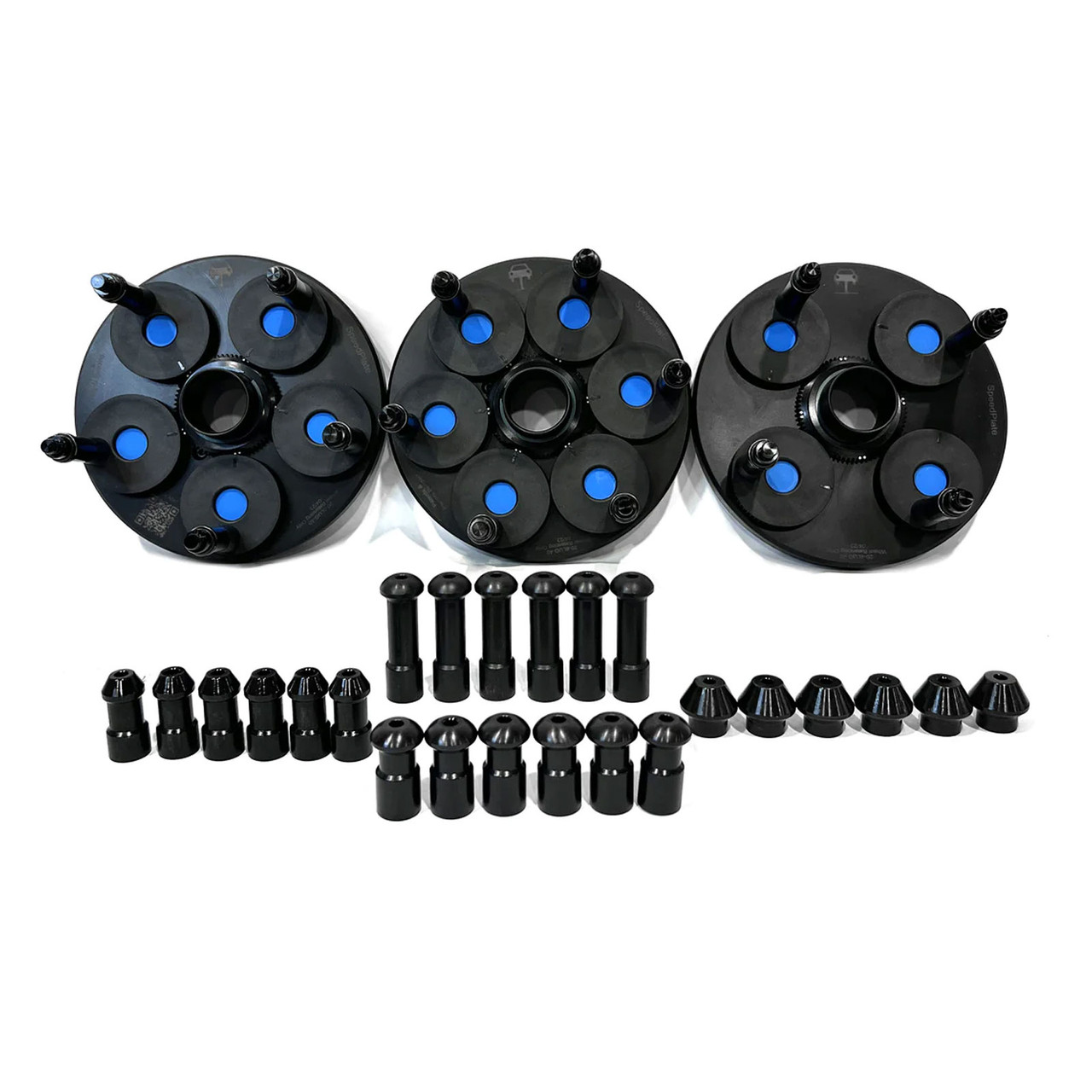

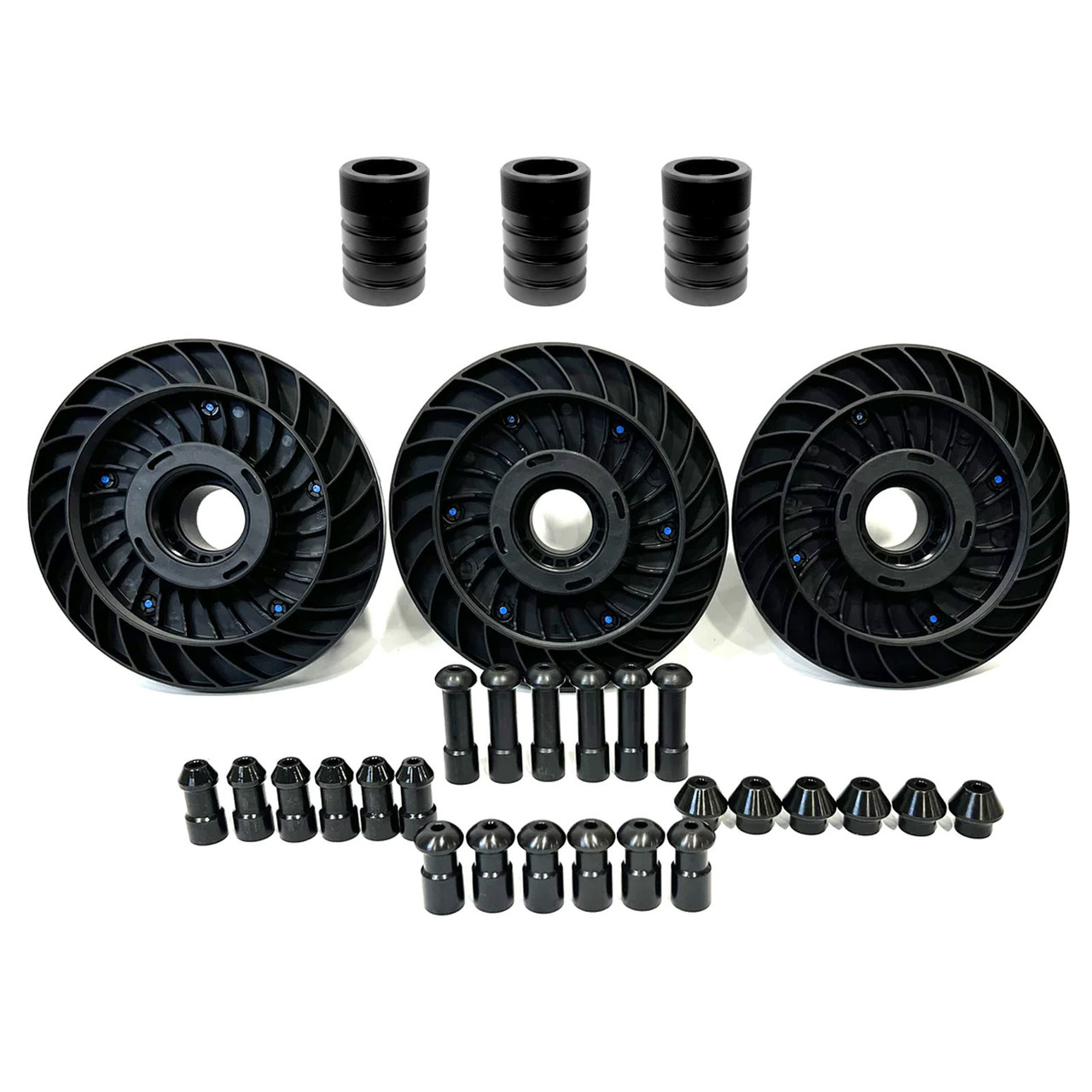

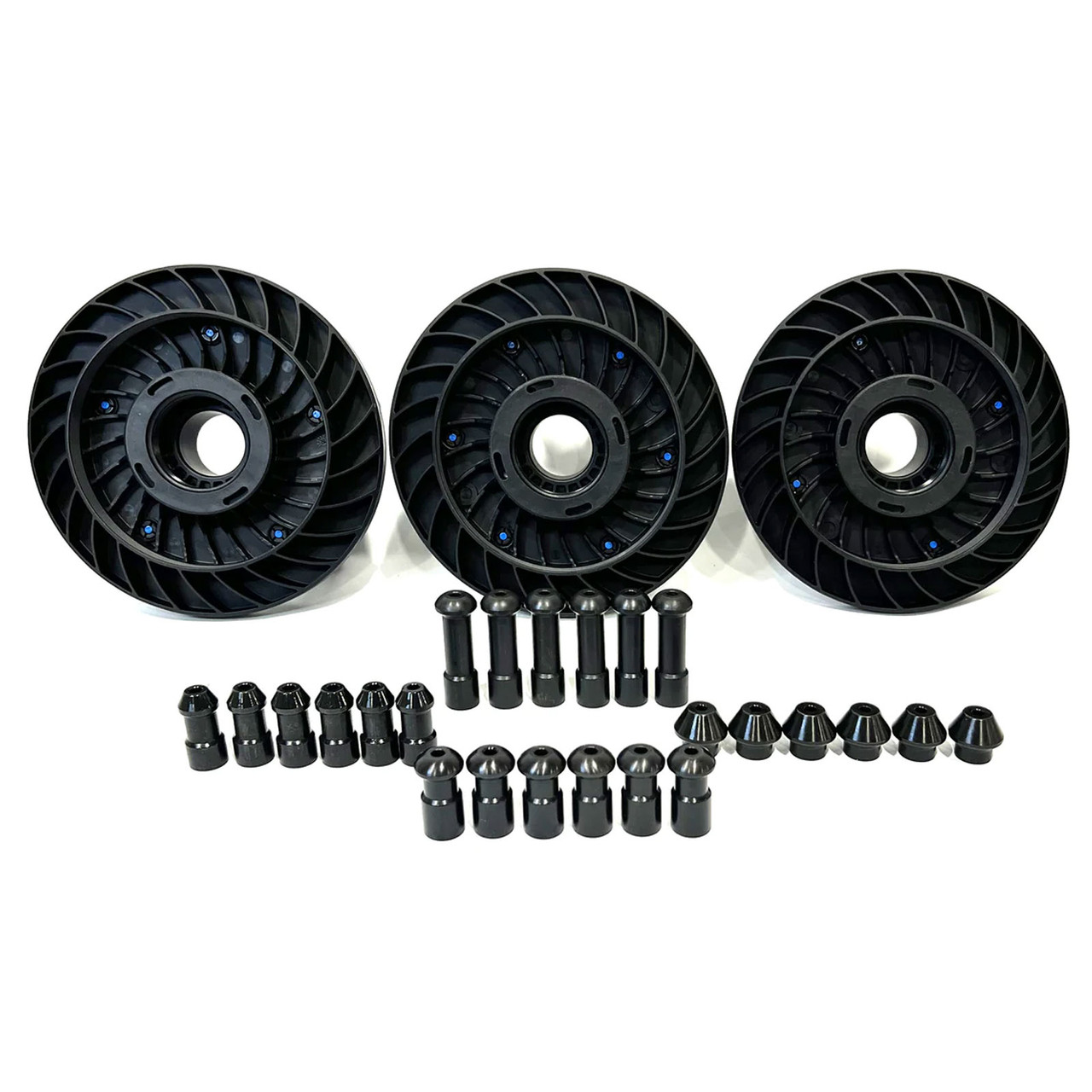

Includes:
- SpeedPlate for 4-lug and 8-lug wheels
- SpeedPlate for 5-lug wheels
- SpeedPlate for 6-lug wheels
- (6) Torque Tips - Style 1
- (6) Torque Tips - Style 2
- (6) Torque Tips - Style 2 Long
- (6) Torque Tips - Style 3
- (3) Grip Style Shaft AutoClamp Handles (Automatic Shaft Balancers System Only)
Interchangeable Part numbers:
- Similar to: Snap-On #EEWB3-1A
- Corghi # 900200400A
- Haweka # WB4029-40
- Coats # 8113841
- Hunter #20-2123-2
Torque Tip Insights:
The ball seat Torque Tip © is usually left on the 5-lug plate all the time. It works on ball seat as well as conical seat wheels. The 4-lug plate is used with E Tips for passenger wheels and B tips for trucks. The 6-lug plate usually use the B Tips. So it’s not often that the Torque Tips have to be swapped out at all.
