Product Description

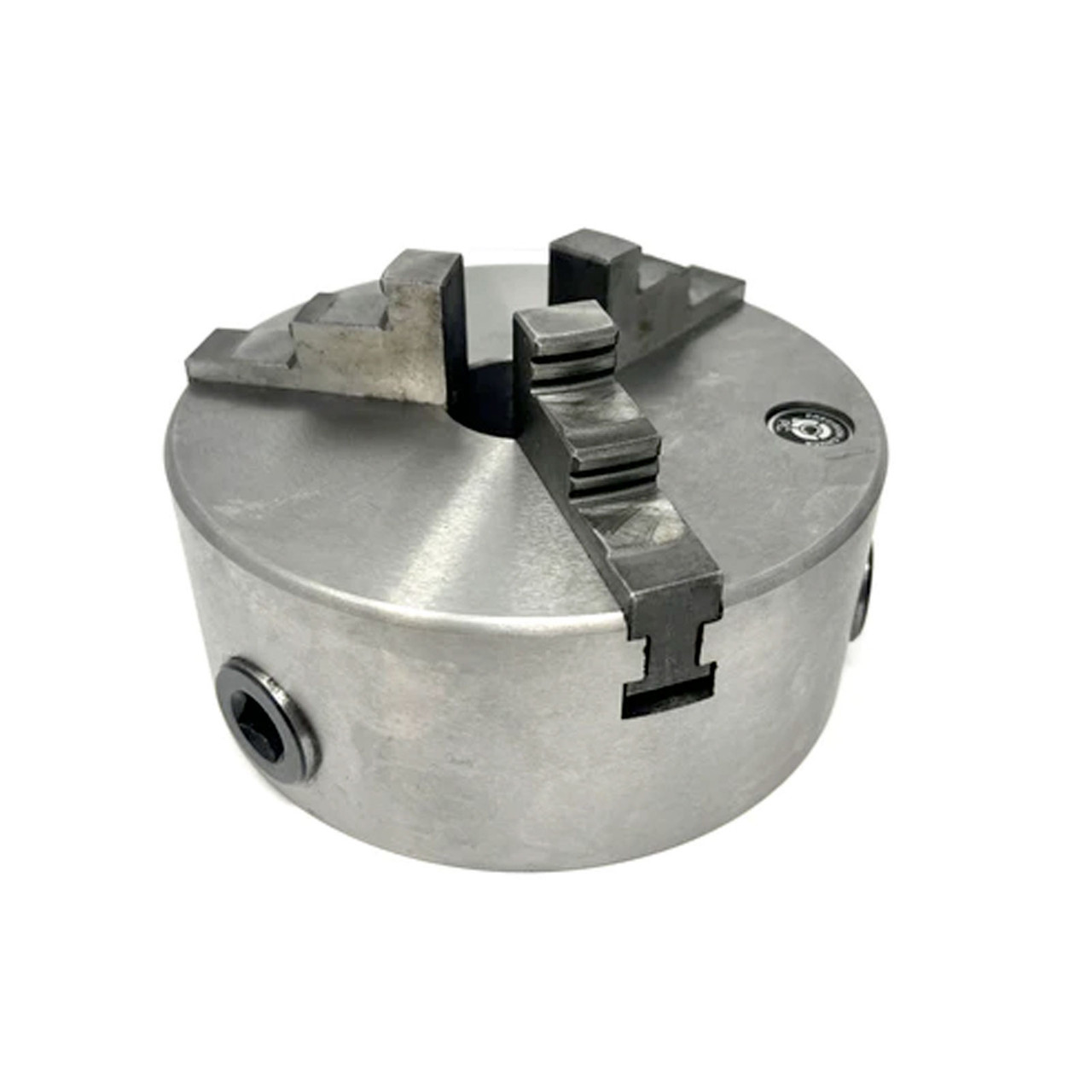

The simplest, fastest and most efficient way of adapting truck wheels to your balancer. The 3-Jaw Chuck design offers dead-on centering accuracy along with quick and easy set-up. Fits most Hub-centric wheels with flat faced mounting pads with a wide range, 3.13” to 7.13”, makes the 3-jaw chuck a versatile tool.
NOTE: PLEASE DOUBLE CHECK THE SIZE OF YOUR BALANCER SHAFT BEFORE ORDERING SO YOU GET THE CORRECT SIZE
Kit Includes:
- 3-Jaw Chuck Adapter for 28mm Shafts
- Clamping Cup with Protector Ring for All Shaft Sizes
- Ratchet Key (For use with Ratchet or Air Ratchet)

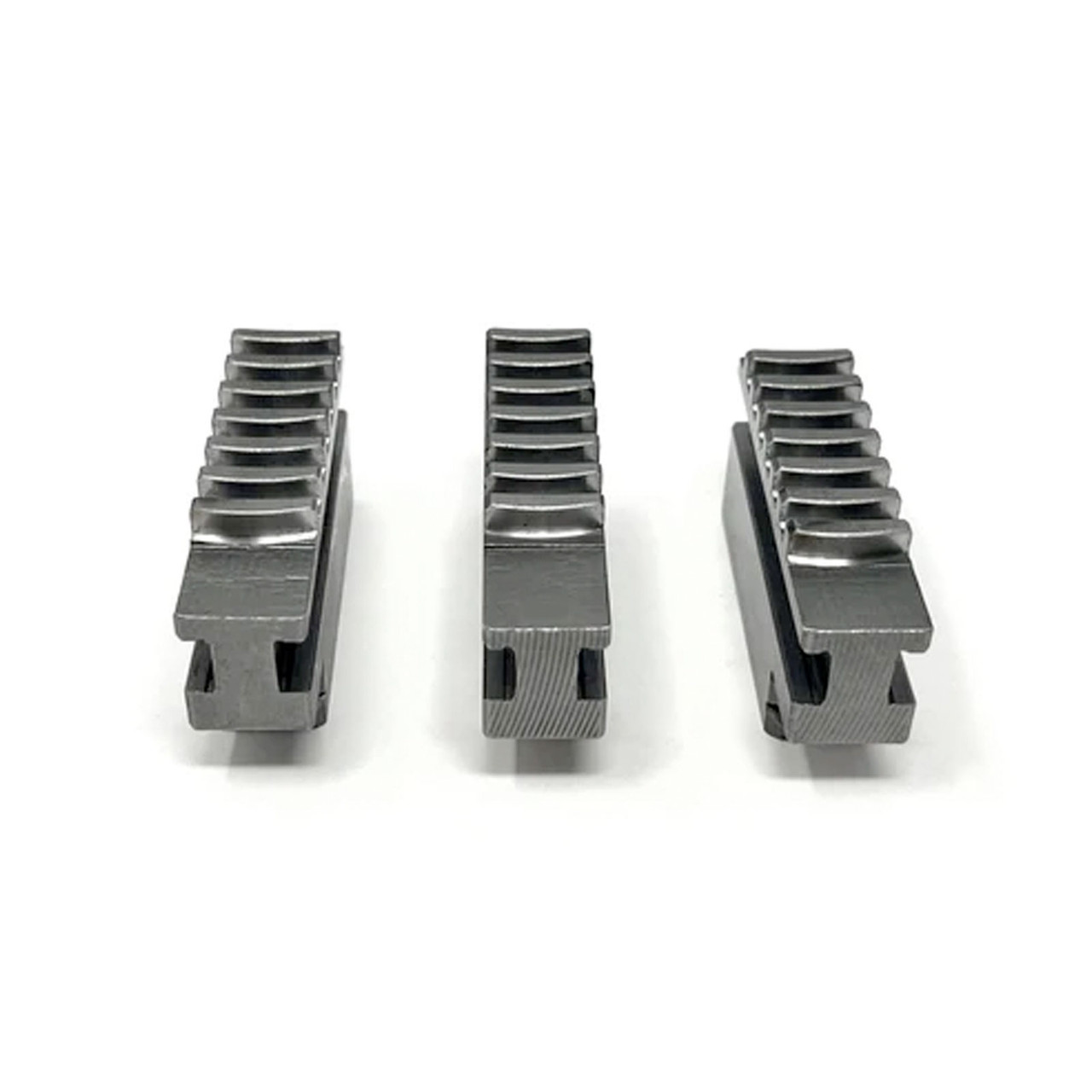

- Optional Larger Extended Jaw Set Available for 7.13" up to 9.125” Holes
Advantages:
- The Balancer Chuck centers itself in the wheel, off the balancer, so weight is not a factor when mounting the assembly onto the balancer shaft.
- An accurate mounting is achieved compared to a steep cone set-up, making it easier for the technician to assure a balanced wheel.
- The Balancer Chucks centering accuracy as well as vertical stability supports wheel while clamping and un-clamping.
- No more cones, the 3-jaws cover a wide range of center hole sizes (Optional Larger Extended Jaw Set Available)
- Ratchet Key fits 3/8” drive ratchet or air ratchet to tighten and loosen jaws.
- In most clamping applications there are no additional spacers required.
- Fits most brands of wheel balancers (see balancer list below)
28mm Shaft Wheel Balancer Models:
- Accuturn: 5100, 5223, 5500, 5600 (Serial #51-0001 To 51-0622)
- Coats: 700, 800, 825, 850, 925, 950, 1000. 1025, 1050 And 1250 IBS2000 (Shaft Must Be Verified 28mm) And 6200HS
- Mondolfo Ferro: All Models Excluding Truck Balancers
- Norton: All Models
- Snap-On: Shafts Must Be Verified 28mm
- Sun: 1742 And 1762
