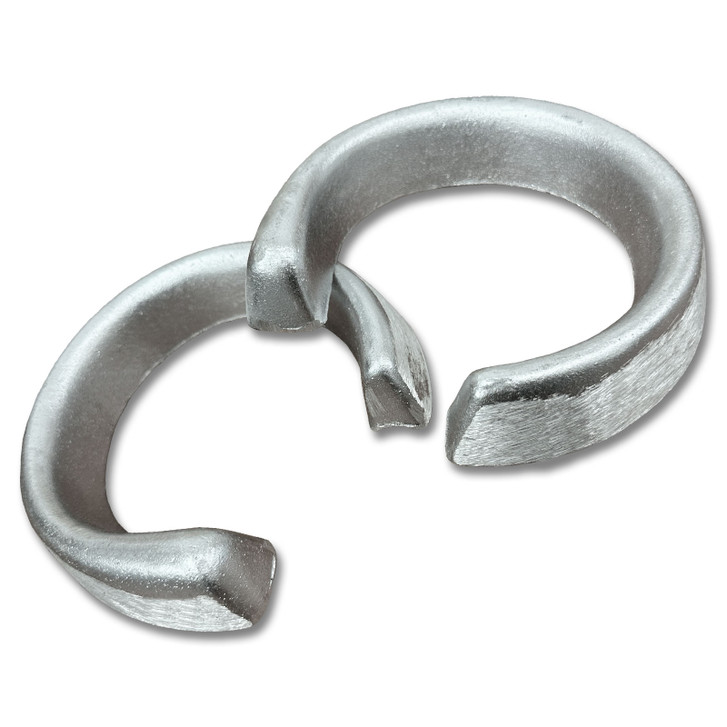

Front Coil Spring Spacer Thickness vs. Lift Amount: Did You Get the Wrong Spacer?
Ordered a 2.5–3 inch front lift kit but the spacer only measures about 1 inch? That is usually normal. On many 2WD trucks and cars with SLA/A-arm front suspension, spacer thickness and lift amount are not a one-to-one measurement.
Quick Answer: Why Spacer Thickness Does Not Equal Lift Height
A coil spring spacer can create more lift than its physical thickness because the lower control arm acts like a lever. The spring sits closer to the pivot point, while the wheel sits farther out. A small change at the spring becomes a larger change at the wheel.
How SLA/A-Arm Suspension Geometry Multiplies Front Lift
In simple terms: the spacer moves the spring, and the suspension geometry multiplies that movement at the tire.
Coil Spring Spacer Thickness vs. Typical Lift Amount Chart
| Spacer Thickness | Typical Front Lift on Many SLA/A-Arm Setups |
|---|---|
| 1/2 inch | About 1.25 to 1.5 inches |
| 3/4 inch | About 1.875 to 2.25 inches |
| 1 inch | About 2.5 to 3 inches |
These are general examples. Actual lift varies by vehicle, spring condition, engine weight, cab style, accessories, and suspension design.
Factors That Change Coil Spring Spacer Lift Ratio
- Straight axle coil-spring vehicles: Usually closer to a one-to-one spacer-to-lift ratio.
- Heavy front end: Diesel engines, big blocks, crew cabs, winches, bumpers, and accessories can reduce final lift.
- Old or weak springs: Worn springs may not produce the expected lift.
- Different suspension geometry: Control arm length and spring location affect the final ratio.
How to Measure Front Lift Before and After Installing Spacers
To confirm the actual lift, measure before and after using the same points.
- Park on level ground.
- Measure from the center of the front hub to the lower edge of the fender opening.
- Install the spacers.
- Measure the same points again after the suspension settles.
- The difference is the actual lift amount.
Front Coil Spring Spacer Installation and Alignment Tips
Front spacers can change alignment, suspension angles, tire clearance, and tire wear. After installation, inspect clearances and get the vehicle aligned.
How to Choose the Right Front Coil Spring Spacer for Your Vehicle
Choose the spacer by the advertised lift amount for your vehicle, not by spacer thickness alone. A spacer made for 2.5–3 inches of lift may physically measure much thinner.
If you are unsure, verify your vehicle fitment, measure current ride height, and confirm whether your front suspension is SLA/A-arm or straight axle coil spring.
